Overview

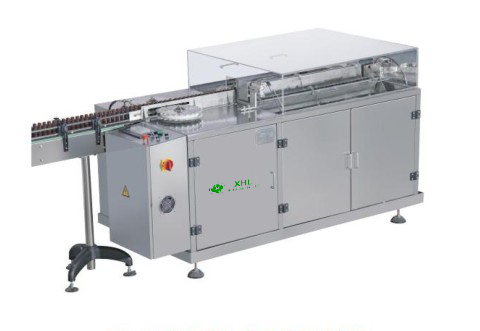

This machine is used for rinsing glass and plastic bottle by clean compressed air, which enters into the bottle, rinses the internal of bottle and then is absorbed out from another exit. Since the machine is fully enclosed, the powder, dust, water drops or impurities in bottle or on the wall of bottle can be blown away, the development and manufacturer of the equipment fill in the gap in the market. With continuous improvement for several years, this kind of equipment has been launched in mass and obtained above 90% of domestic market shares. It has been granted with several patents in China.
Features
-Simple structure, stable function, easy operation and low maintenance cost.
-It is equipment with ion generator to effectively remove static electricity, reduce powder and dust adsorption with good dust removing effect.
-Automatic bottle feeding and discharging. The cylinder baffle makes it convenient to change bottles of different sizes. Just adjust the height of the nozzle and the distance with the cylinder baffle.
-PLC control and man-machine control for bottle washing process.
-Automatic counting. No action is made if there is no bottle.
-The machine can remove all micro particles and powder in the bottles.
-The particles removed are discharged through vacuum suction, without recirculation and pollution to the environmment.
-The machine body and parts are made of SS 304 with polished surfaces, easy disassembly and cleaning
-The whole machine is installed with Plexiglas door and provided with the function of stopping the machine when the door is opened.
-The washing quality conforms to the GMP requirements.
Main Technical Parameter
| Bottle used: | 20-500ml | Power supply: | 220V 50/60Hz |
| Production capacity: | 4 head 2000-3000BPH, 12 head 3600-7200BPH, 24 head 1000-12000BPH | Power: | 0.75kw |
| Air consumption: | 25m3/h | Single machine noise: | <70dB |
| Compressed air pressure: | 0.6-0.8MPa | Purified air: | 0.2μm |
| Clean time: | 3-5 seconds | Net weight: | 500kg |
| Outline dimensions: | 1200x 800 x 1600mm |
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling production line.
-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity and demands.
We will provide you with associated design solutions and case videos.
